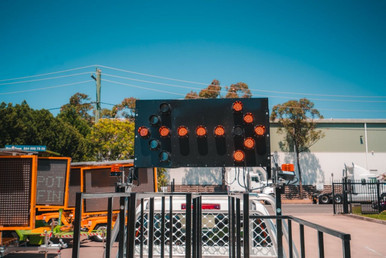

Vehicle Mount B Size Arrow Board 15 Leds Single Sided

SKU:
25-VMAB-15

B Size vehicle mount LED Arrow board with 15 Lamps, Controller Module, Roof Mount Assembly and Hydraulic Actuator.

This vehicle-mounted arrow board for traffic control provides high visibility at low power consumption. Great for traffic ...

  • Vehicle Mount B Size Arrow Board
  • Vehicle Mount B Size Arrow Board
  • Vehicle Mount B Size Arrow Board
$2,855.16 inc GST
$2,595.60 ex GST

Loading stock status...

Frequently purchased together:

Description

This vehicle mounted arrow board provides high visibility at a low power consumption. Designed to handle the harsh Australian sun, it is a lightweight unit built tough to withstand everyday use.

Featuring 15 highly visible amber LED lights, it is designed for use during road works to denote left arrow, right arrow, double headed arrow and other patterns.

Sold separately are optional dual flashing amber lights to further promote safety and vehicle visibility.

A single side-mounted hydraulic lift arm rises and lowers the unit. When lowered, the streamlined design allows for minimal wind resistance for increased safety, adding only 215 mm in height when folded down. When raised, the board measures 980 mm high.

This directional arrow board is high quality and designed and manufactured in an ISO9001 accredited facility to meet Australian requirements.

Features:
  • Low profile - only 215 mm high when folded down
  • Automatic dimming LED lamps
  • High visibility from long distances
  • Simple wiring connections between board and controller
  • Aluminium black powder coated boards
  • B Size Board Dimensions: 1500 mm wide x 770 mm high
  • Complies to AS/NZ Standard AS4192 Illuminated Flashing Arrow Signs, MUTCD Compliance
  • Suitable for mounting on trucks and work utes
  • Power: 12V
  • Single Sided configuration featuring 15 individual amber lamps
  • Lamps and shrouds are easily replaceable if necessary
  • Full range of spare parts available from Jaybro
  • Unit weighs 38kg
  • IP56 waterproof rating
  • Wide range of flashing patterns and flash rates for different applications
  • Energy efficient operation with low power dissipation
