Davit Arm And Base System

SKU:
33-DAVKIT
Constructor Safe davit arm & base system provides a fixed anchorage point for work winches or rescue systems. Commonly used for entering confined spaces, the davit arm has the ability to be removed from the base and moved to sites where there ...
  • Davit Arm and Base System
  • Davit Arm And Base System
$5,268.96 inc GST
$4,789.96 ex GST

Out of stock

Loading stock status...

Frequently purchased together:

Description

The Davit arm and base are coupled together to provide a fixed anchorage point for work winches or rescue systems. Commonly used for entering confined spaces, the davit arm has the ability to be removed from the base and moved to sites where there are other fixed bases. The arm can swivel and provides easy access in many confined situations.

  • Safe working load SWL 130 kg - Davit Arm & Base Kit
  • Measures 2060 mm high x 710 mm wide (see attached spec sheet file for more detailed dimensions)
  • Packed size 1.2 x 1.2 metres
  • Meets Australian Standards AS/NZS 1891.4
  • Conforms to AS 4100-1998, AS1170.2-2011 (Davit Arm & Base)
  • Conforms to EN795 Class B
  • Bolts hold the upper tube to the base, but these can be loosened to allow for 360 degrees swiveling
  • Base weight 13 kg, Arm weight 19 kg
  • 12 month warranty
  • UV resistant metal
  • Includes davit arm, base and winch
  • Must be fitted to a structural anchorage capable of withstanding 15kN working load
  • Secure to ground with 8 x M16 epoxy bolts
  • Base plate dimensions 300mm x 300mm
  • Note that this item should be certified after installation by a qualified engineer
  • Requires certification every 12 months
    • View AllClose

    Additional Information

    uom:
    Kit
    Weight:
    35.00 KGS
    View AllClose

    Related Products

    Related Products

    Davit Arm Davit Arm
    Quick view

    Davit Arm

    SKU: 33-DARM
    POA
    Davit arm has the ability to be removed from the base and moved from job to job, where there are other bases. The arm is able to swivel and provides easy access in many situations.
    Davit Base Davit Base
    Quick view

    Davit Base

    SKU: 33-DABS
    POA
    The Everest davit base is suitable for use with the Everest 33-DARM davit arm and base system. These are coupled together to provide a fixed anchorage point for work winches or rescue systems...
    Plate locks system 12m plate lock 12m suburban
    Quick view

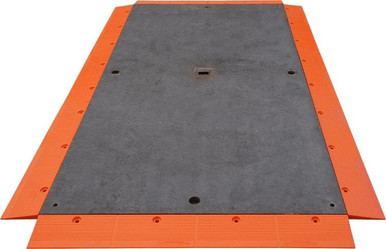

    Plate Locks System 12m
